With today’s major update, 1.185.0, we are releasing a large overhaul to the physics in Space Engineers. The update is primarily focusing on pistons, rotors, landing gears, and grid deformations.
The original vision of Space Engineers was to build a game where physics behave exactly as in the real world. We wanted players to be able to transfer their intuition from the real world to the game world. Things in Space Engineers should behave exactly as one would expect them to behave in real world. There shouldn’t be things that look like they can do something but actually cannot and are there just for visual effect. We wanted to create a game where there are no limits in what players can create.
Just as an illustration: in Space Engineers we have practically infinite worlds, players can seamlessly travel from planets to moons to asteroids, they can build and destroy everything that’s in the world, they can dig through the entire planet which are huge — up to 120 km, players can build kilometer-long ships while being completely destructible. Ships and stations have their own mechanics – pistons, rotors, thrusters, gravity generator, conveyors, programmable computers and many more.
On top of that, everything is destructible, deformable, recalculated in real time, different blocks have different strength, gravity and other forces push on objects, ships crashes and collisions feel like in real world. We consider these to be the core elements of Space Engineers.
This has been a top priority for me and the SE team during the last year – to have these things be as robust, stable, and intuitive as possible.
The game’s physics are now more stable and creations shouldn’t break, explode or
do uncontrollable things under normal conditions with default settings. But if players override safe parameters (via mods or in-game sliders) and really push our engine, things may get uncontrollable. However in general, the physics will now remain stable even under much more stressful conditions than before.
In other words, Space Engineers physics are now very stable and robust.
What is the worst case scenario that can still happen in game?
Setting max piston forces to very high values can cause clanging, as well as connecting grids with multiple constraints like a square array of connectors or a long chain of pistons.
Honestly, I don’t think any other group has done more in the realm of real time large scale interactive physics volumetric simulations. No other game or software project is facing these kind of challenges on this scale.
We are pushing the frontier and defining the limits. It’s a hard and painful process, but occasionally there are days like today, where we are happy to present our latest iteration!
Because Space Engineers is still under development, there may be bugs (our testers spent hundreds of hours testing, but this is nothing compared to tens of thousands of hours played by our community immediately after every update). Nevertheless, we will do everything to fix any issue as fast as possible.
Disclaimer: This major update focuses on physics, not multiplayer. Although, the latter has received huge improvements as well. There are still situations in multiplayer where players can push physics to the limit and break the game. Our next focus will be these edge cases.
However, the game should be stable under default conditions, both in single-player and multiplayer.
Thank you for reading and we look forward to hearing your feedback on this update.
For more news:
Space Engineers: www.SpaceEngineersGame.com
Medieval Engineers: www.MedievalEngineers.com
General AI Challenge: www.General-AI-Challenge.org
AI Roadmap Institute: www.RoadmapInstitute.org
Keen Software House: www.keenswh.com
Marek Rosa is the CEO and CTO of GoodAI, a general artificial intelligence R&D company, and the CEO and founder of Keen Software House, an independent game development studio best known for their best-seller Space Engineers (2.4mil+ copies sold). Both companies are based in Prague, Czech Republic.
Marek has been interested in artificial intelligence since childhood. Marek started his career as a programmer but later transitioned to a leadership role. After the success of the Keen Software House titles, Marek was able to personally fund GoodAI, his new general AI research company building human-level artificial intelligence, with $10mil.
GoodAI started in January 2014 and has grown to an international team of 20 researchers.
The following technical post goes into great depth about the changes that were made to Space Engineers for this update. It was written up with diagrams and videos by Martin Pavlicek, one of our programmers here at Keen Software House who worked heavily on this physics iteration.
Let’s take a look on one of the main cases that welding should solve.
In a following video, we can see interesting ship made out of multiple connected sub-grids. Welding should protect it from breaking up and make sure that sub grids don’t disconnect at high speeds. What we get though is not really what we expected
At its core, welding is a nasty trick achieved by dynamic swapping of rigid bodies at the core physics simulation level. Unfortunately, this doesn’t come for free and introduces many side effects, like performance issues (Keen eye might notice simulation lag in previous video at 22s), simulation flaws like rigid bodies warping through each other when safety lock is enabled/disabled each frame…
… and risk of random disconnections of landing gears, wheels, rotors or pistons every time the grid is welded/unwelded and rigid bodies are hot-swapped …
… and last but not least, ugly simulation where every rotor, piston or wheel freezes at high speeds.
This led us to conclusion that welding is not the way we should or want to go and decided to remove it entirely.
One of the main issues we had to deal with in past was the bullet-through-paper-problem (this is a well-known problem with real time physics simulation).

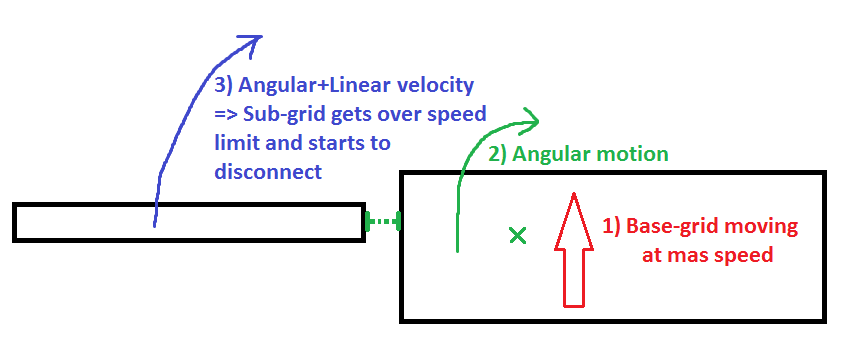

Limiting the max speed of in-game objects works pretty well for that case but problems come when sub-grids get limited more than base grid due to high angular velocity. See sketch below.
This usually causes sub-grids to disconnect and clang out at high speeds, particularly in space. We solved this issue by strengthening physical constraints and unlocking the subgrids max speed. This allows them to move as fast as needed to keep up with the still limited main/base/central grid.
By further strengthening and stabilizing the physical constraints that keep the sub-grids together, we achieved pretty stable simulation. To demonstrate our solution, lets take a look at the following case study. Combination of rotors, pistons, landing gears and on top of that, each attached fighter is further stressing the connections with enabled inertia dampeners.

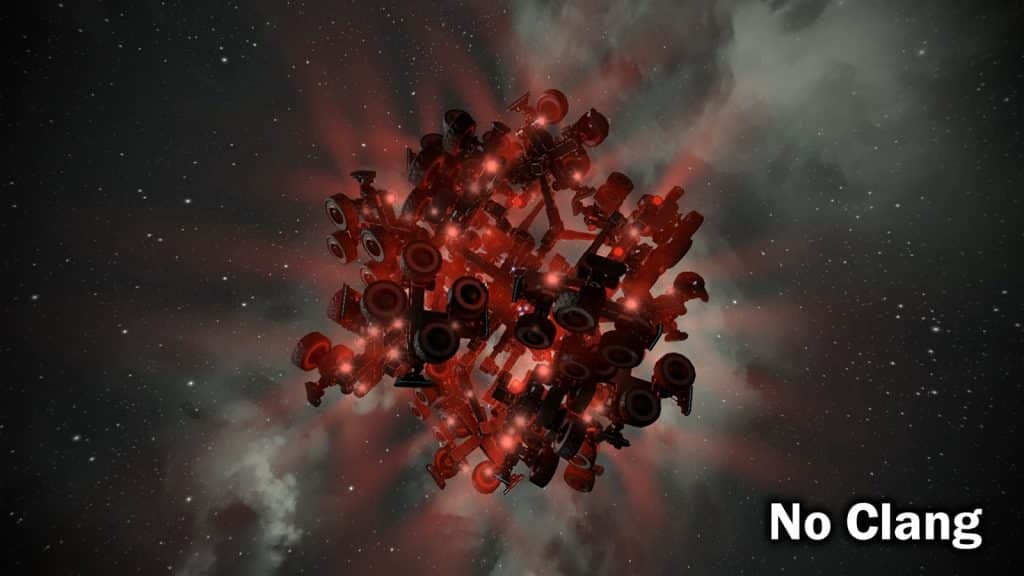

By further strengthening the constraints, we can push them to the limits now, without risk of piston parts flying all over the place like they usually ended up before.
Or, when player wants, constraints can now be configured in a way so they break in predictable manner when stressed too much:
Another issue we had to solve in this iteration were so called “Jiggling grids”. These are creations with very large inertia tensor and/or mass ratios.
Unfortunately, we hit a wall here. This problem is particularly tricky for computers to correctly detect and resolve. After our experience with auto-safety locking, we decided not to opt for an auto-detection system, but rather give you, the players, full control over it. This will allow you to fine-tune your creations exactly to your needs.
That’s why we introduced so called Shared inertia tensor.

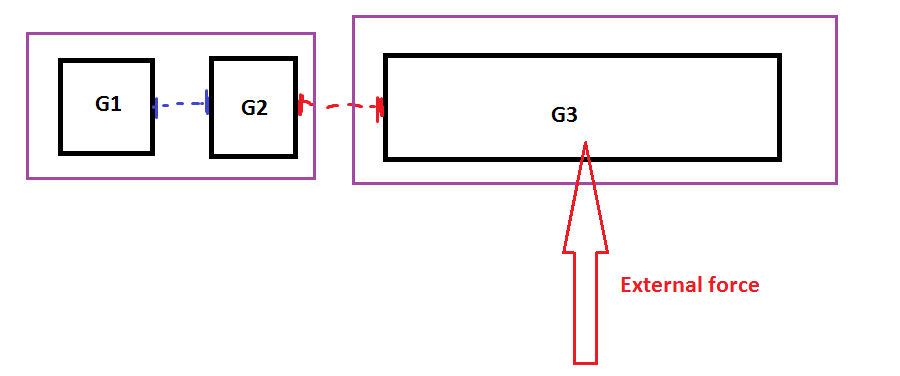

If we take a look at the following sketch: G1, G2, and G3 represent grids connected by physics constraints (blue and red lines), those might be for example rotors.
Now, when G3 gets some external impulse, it will start to move and/or rotate. Red constraint will need to compensate G2 for G3’s displacement to keep their intended relative positions. The question is, how much will the G2 succumb and how much will be the G3’s movement slowed down by G2’s resistance.
The problem becomes more and more obvious the bigger the G1 and G3 are compared to the much smaller G2. Since the Havok constraints are solved one by one, not as an entire system as a whole, G2 will succumb to either G1 or G3 each frame, start to oscillate/jiggle between these two as the G1 and G3 will fight over G2. They’ll never move itself to actually find some common compromise and system will never converge to stable simulation/result.
That’s where the shared inertia tensor comes into the play; to either equalize physical properties across all bodies when enabled on every constraint– as shown in the example below– or say which grid will be the master and which one should succumb.
Here is in-game video with before and after.
It also helps to stabilize piston chains with “heavy endpoints”, as you can see on this example. Before, the scene didn’t even load without being immediately possessed by Clang:
Now, the scene loads just fine and pistons are even able to move at low speeds without any help of shared tensor. Unfortunately, as the speed goes higher, the pistons will start to behave as a bead chain and problems described above will start to show in a big way. After enabling the shared tensor, everything just works.
And finally in gravity.
Just to not render it as some kind of silver bullet solution to every problem, there are some downsides to this, like simulation inaccuracy compared physical laws, and of course, sometimes we want sub-grids to be submissive as much as possible, for example on tank tracks so they don’t “fight” the main body. That’s why it’s not enabled by default and users should use it wisely and only when need, to achieve more stable creations.
In previous iterations, pistons were pretty cheesy (when it came to any physical realism). They were also sometimes a pain to use because of their infinite strength and power to penetrate other solid obstacles.
Simulating some kind of suspension or pneumatic piston is not an easy task in real time physics simulation in general. It’s even worse in a world as dynamic as those Space Engineers can offer.
After some tests we decided to not dive into any kind of complicated piston implementation with strength settings and availability to be pushed back when too much pressure is applied on them. Partially because it would be too complicated and time consuming to make it work “right”, partially because it would ruin some creations that rely on pistons with “infinite force” and no pushback.
Thus we decided for compromise that will solve the worst issues players currently face but it will provide the “backwards compatibility” for those who need it at the same time. That is, keyframed piston with limited impulse.
Piston is natively backed by Havok fixed constraint. This is the stiffest constraint we can use now, as opposed to prismatic constraint which is intended for this scenario by Havok and may provide more accurate simulation, but its hold is quite vague under certain scenarios, especially when CoM is far from constraint pivot location.
When a piston is ordered to extend/retract, the constraint is manually positioned each frame and impulse, needed to get the rigid bodies to new desired position is measured. Whenever the impulse starts to grow over certain threshold, specified by player in GUI, the piston advancement is stopped until the constraint catches up again. This usually happens when piston head starts to collide with some other obstacle. It is either light enough so it can be moved away, or it starts to stress the constraint and stops the piston.
One of the big topics in the community are the so called phantom forces. The kind of strange behaviour when pasting a grid in space and then it starts to spin or fly away in an uncontrollable manner.
After investigating the issue, and doing some internal tests, we realized that this particular behavior is hard to control in real-time.

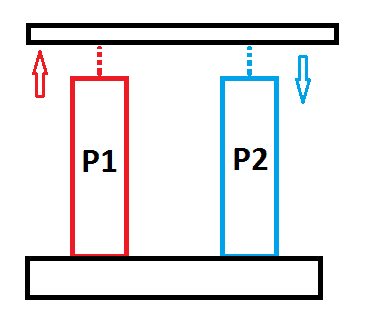

Imagine a simple case where there are two pistons connected to the same rigid platforms.
As long as the length of each of these two pistons stays the same as the other one, everything will be fine. The problem comes the moment when one of them changes its length compared to others connected to same rigid body. The inner stresses/tension that will raise inside the system at that moment will result in a fairly complex simulation problem that real-time physics is not able to correctly resolve in any reasonable manner and usually results in a simulation with systems that end up with more energy than they started with in each frame. Usually spinning, flying in different directions and sometimes clanging grids.
In any case, we are not able to differentiate these simulation flaws from normal simulation.
So, when designing your creation, try to avoid “double-connections” like shown on the example above and whenever you encounter the so called phantom forces, double check every connection on your grid and make sure that it doesn’t “fight” with another one. That way, you should never experience these problems.
In order to save the precious CPU time, we decided to early detect and deactivate stationary grids more aggressively and give Havok stronger leads to not simulate these.

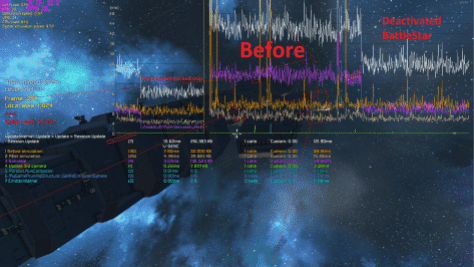

As you can see on following profiler dump, just by not simulating stationary rigid bodies that are fixed to either voxel or another station, we can gain massive performance improvements.
Red: Detected stationary
Blue: Force-fixed static

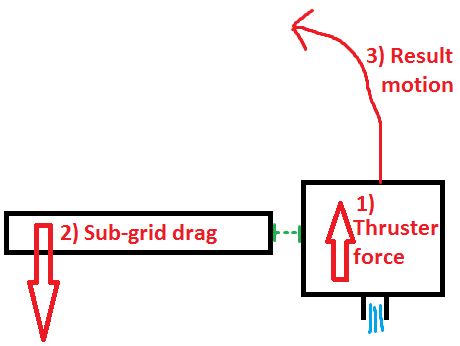

I believe that one of the things regular players will really appreciate is CoM-corrected thrust. Before, the attached subgrids would create so called “subgrid drag” which was annoying in space…

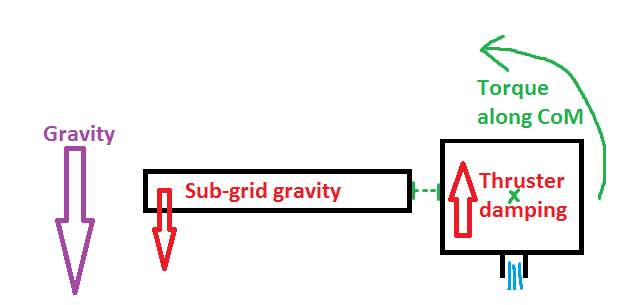

… and things-breaking in gravity.
Damage handling caused by subgrids, for example impact damage, was adjusted in a way that it will be ignored between subgrids of the same physical group.
We will trade a little bit of realism for user experience. Nice creations will no longer get destroyed by accident subgrid impact and it will allow users to make even more immersive creations.
This does not apply on damage caused by ship to ship impacts. Only physically connected grids get this resistance.
Under high angular velocities, subgrids were displacing or entirely disconnecting due to high forces acting upon the construction. This was also fixed in this iteration.
When everything fails and the worst is about to happen from some unexpected reasons, it’s always good to have safety fuse. That’s why we implemented safety detach on all “mechanical connection blocks” (That means Rotors, Pistons, Wheels for now). This will protect users from experiencing all those unexpected situations, when subgrid gets insane speed when corrected after being displaced from its intended position and killing everything alive in its way and/or damaging it’s own sub-grids, once and for all.
Satellite in following video is example of so called “Jiggling structure”. When safety detach is correctly configured, it will end up “only” with some broken blocks and some subgrids flying away, instead of possessed grid, flying out of control.
Crashing ship to the planet were causing split parts of the grid falling through the terrain to the center of the planet. This was happening also in collisions with other types of physical objects, although in smaller scale. The root cause was that creating or changing shape in physics also discards all the contact points, which means that for the next simulation frame grid can phase through other entities, until it regains the contact points again. Given the deformations were performed each frame, the grid was for most of the time without contact points, thus phasing through other grids. We have added reintegration step after each change of physics shape.
We have also tweaked all the deformations carefully according to the original release of Space Engineers.
No more ship-eating planets!
Here comes some examples of long occurring bugs that were solved along during the process.
“Sacrificial Offering for Almighty Lord CLANG” is one of those creations made just to stress-test Space Engineers. Some players may be angry that we fixed it (Well, mostly, phantom forces are still there)
There was interesting bug in pistons.
Center/extending part was just broken from physics perspective. It was usually just missing or would fly away after first contact. Astronauts or even ships were able to fly through.
And that’s it, for this iteration. For all those who made it this far, this is how that beautiful creature from first case study looks and behaves now, after all the improvements made in this iteration.
